SWITCH

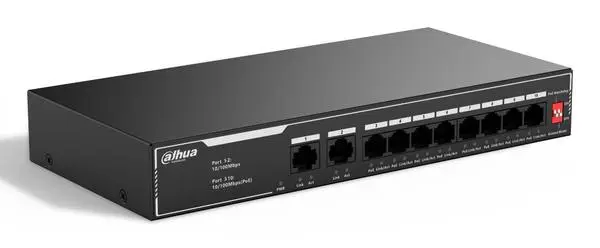

Switch DAHUA SF1010LP

44,29 €

Gamintojo kodas: DH-SF1010LP
Garantinis aptarnavimas: 36 mėn.
Garantija pagal įstatymą: 2 metai
Sandėlyje: 5
Pristatymas: 2-3 d.d.

44,29 €

Kurjeriu3,99 € · Venipak, DPD Atsiimti salone nemokamaiVilnius, Kaunas, Klaipėda, Plungė IšsimokėtinaiArtea, GF bankas Garantija36 mėn. gamintojo garantija

Aprašymas

The 8-Port PoE switch with 10/100 Mbps is cost-effective and accessible. It supports scenarios with 1 to 8 access points and is widely used in security monitorning network, such as supermarkets, hospitals and stations

Long Distance Power Transmission
Adopt DIP switch with bandwidth limit (100Mbps/10Mbps). After speed limitation, it supports 250 m long distance PoE transmission.

PoE Watchdog
Adopt the PoE watchdog function to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.

Support eight 10/100M PoE power supply ports, and two 10/100M uplink ports
Support 802.3af and 802.3at standards
Operating Temperature: -10°C to +55°C
Support 250 m long distance PoE tansmission
Support PoE watchdog

Specifikacija

Summary	Dahua Technology PoE SF1010LP. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 10. Full duplex. MAC address table: 2048 entries, Switching capacity: 2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable
Category Code	SWI
Switch type	Unmanaged
Switch layer	L2
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	10
Uplink ports quantity	2
Networking standards	IEEE 802.3/IEEE 802.3u/IEEE 802.3x
10G support	No
Copper ethernet cabling technology	100BASE-TX/10BASE-T
Full duplex	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100 Mbit/s
Flow control support	Yes
Switching capacity	2 Gbit/s
Forwarding rate	1.49 Mpps
MAC address table	2048 entries
Jumbo frames support	Yes
Jumbo frames	2048
Rack mounting	No
Product colour	Black
Housing material	Metal
LED indicators	Yes
Wall mountable	Yes
Power source	AC
AC input voltage	100 - 240 V
Power consumption (max)	65 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Total Power over Ethernet (PoE) budget	65 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Width	242.5 mm
Depth	122.9 mm
Height	35 mm
Weight	760 g
Package width	303 mm
Package depth	262 mm
Package height	72 mm
Package weight	1300 g
Sustainability compliance	Yes
Compliance certificates	CE
Unit Calculated Weight	1.3 kg
Product Net Weight	0.76 kg
Unit Calculated Volume	0.005715 cubm
Units per Shipping Box	1
Name	NET SWITCH 10PORT 8POE/SF1010LP DAHUA
Model name	SF1010LP
