MS110GMP 10-Port Gigabi Desktop Sw 8-Port PoE+

55,69 €

Gamintojo kodas: MS110GMP
Garantinis aptarnavimas: 24 mėn.
Garantija pagal įstatymą: 2 metai
Sandėlyje: 2
Pristatymas: 6-7 d.d.

55,69 €

Kurjeriu3,99 € · Venipak, DPD Atsiimti salone nemokamaiVilnius, Kaunas, Klaipėda, Plungė IšsimokėtinaiArtea, GF bankas Garantija24 mėn. gamintojo garantija

Aprašymas

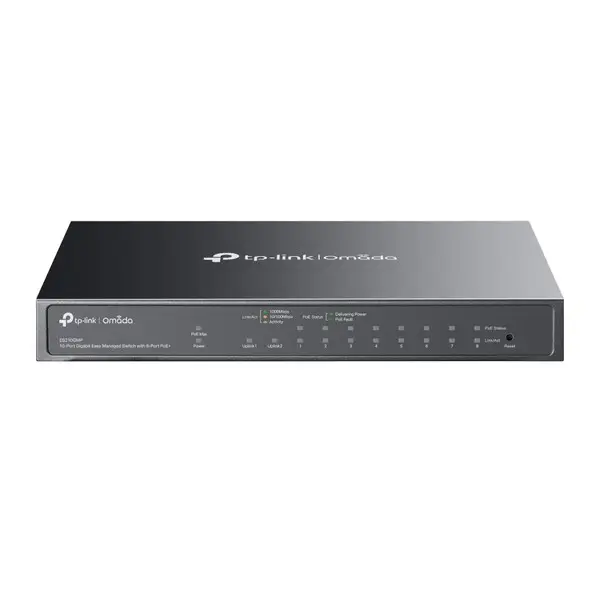

Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

9× 10/100/1000Mbps RJ45 ports (8× 802.3af/at-compliant PoE+)
1× Gigabit SFP/RJ45 Combo port
123W Power Budget, with up to 30W for each PoE port
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app
Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

Specifikacija

Data Act	Link
Switch class	Managed
Application	Home and small office
Switch layer	L2
Network architecture	GigabitEthernet
Number of 10/100/1000 Mbps ports	1
Number of PoE+ ports	8
Number of COMBO ports	1
Number of SFP ports	1
Console port	No
Forwarding mode	Store-and-forward
Throughput	20Gb/s
Forwarding rate	14.88Mpps
Packet buffer	4MB
MAC address table size	8000
Support for Jumbo frames	Yes
Jumbo frame size	15KB
VLAN	MTU VLAN Port-Based VLAN 802.1Q Tag VLAN Max 32 VLAN Groups 4K VID
Supported protocols and standards	Standard: 802.3af PoE and 802.3at PoE+ compliant PoE Ports: 8 ports PoE Budget: 123W available for all PoE+ ports, 30W max per port Fast PoE & Perpetual PoE PoE Auto Recovery Up to 250m PoE transmission distance
QoS	Port-based/802.1p/DSCP QoS 8 Priority Queues Priority Schedule Mode WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control Port-Based Rating Limit Storm Control Multiple Control Modes (kbps/pps) Broadcast/Multicast/Unknown-Unicast Control
Management, monitoring, configuration	Omada App Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller Cloud Access Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning Requires the use of Omada Cloud-Based Controller Management Features Web-based GUI DHCP Client Cable Diagnostics Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Unified Configuration
L2 features	L2 Features Static Link Aggregation Loop Prevention / Loopback Detection Flow Control 802.3x Flow Control Mirroring Port Mirroring One-to-One Many-to-One Ingress/Egress/Both Port Statistics Port Mirror Status Traffic Statistics 802.1ab LLDP L2 Multicast IGMP Snooping IGMP v1/v2/v3 Snooping Fast Leave
Chassis type	Rack
Fan	No
Environment requirements	Operating Temperature: 0°C~40°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certificates	FCC CE
Accessories included	ES210GMP Power Adapter Installation Guide Rubber Feet
Power supply	AC/DC Adapter (Input: 100-240V AC; Output: 53.5V DC/2.43A)
Dimensions	209 × 126 × 26 mm
