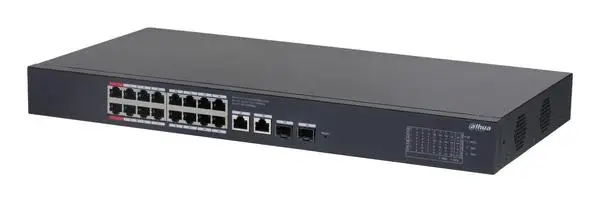

Switch DAHUA CS4220-16GT-190

177,19 €

Gamintojo kodas: CS4220-16GT-190
Garantinis aptarnavimas: 36 mėn.
Garantija pagal įstatymą: 2 metai
Sandėlyje: 2
Pristatymas: 2-3 d.d.

177,19 €

Kurjeriu3,99 € · Venipak, DPD Atsiimti salone nemokamaiVilnius, Kaunas, Klaipėda, Plungė IšsimokėtinaiArtea, GF bankas Garantija36 mėn. gamintojo garantija

Aprašymas

Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z standards
Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards
Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE
A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof

Specifikacija

Summary	Dahua Technology CS4220-16GT-190. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. MAC address table: 8000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Category Code	SWI
Switch type	Managed
Switch layer	L2
Cloud-managed	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	18
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	18
SFP module slots quantity	2
Networking standards	IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
10G support	No
Flow control support	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN
Number of VLANs	32
Switching capacity	40 Gbit/s
Forwarding rate	29.76 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Jumbo frames	15000
Packet buffer memory	0.5 MB
DHCP features	DHCP client
Loop protection	Yes
Rack mounting	Yes
Form factor	1U
Product colour	Black
Housing material	Metal
Reset button	Yes
LED indicators	Link/PoE/Power/System
Mean time between failures (MTBF)	762116 h
Power source	AC/DC/PoE
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Power consumption (max)	212 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	16
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	190 W
Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Storage relative humidity (H-H)	5 - 95 %
Width	440 mm
Depth	220 mm
Height	44 mm
Weight	2320 g
Package width	540 mm
Package depth	342 mm
Package height	90 mm
Package weight	2970 g
Unit Calculated Weight	3.22 kg
Unit Calculated Volume	0.01652 cubm
Units per Shipping Box	1
Name	NET SWITCH 20PORT 16POE/CS4220-16GT-190 DAHUA
Model name	CS4220-16GT-190
