Battery charger USB-C S ET 3.7V/1.2V VC8SSET

Key features:

• three-stage Li-ion charging method (TC/CC/CV)
• eight independent charging channels
• LCD display
• cell capacity measurement
• charging current: 3A×2, 2A×4, 1A×8, 0.5A×8, 0.25A×8
• charging voltage: Li-ion 4.2V +-0.05V
• Charges 1-8 Li-ion (3.6V/3.7V) and Ni-MH cells in sizes AAA/R03, AA/R6, 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, and 18700. Also supports charging of R14, R20, 22650, 25500, and 26650 batteries, as well as protected 20700 and 21700 cells.

Xtar is a renowned manufacturer of high-quality Li-ion battery chargers, flashlights, and Li-ion batteries. Xtar products are sold in over 120 countries, including the USA, Germany, Japan, and Russia. Xtar uses top-quality materials in the production of its chargers--from the casing material to the high-performance electronics. All Xtar chargers hold the CE certification required for European markets.

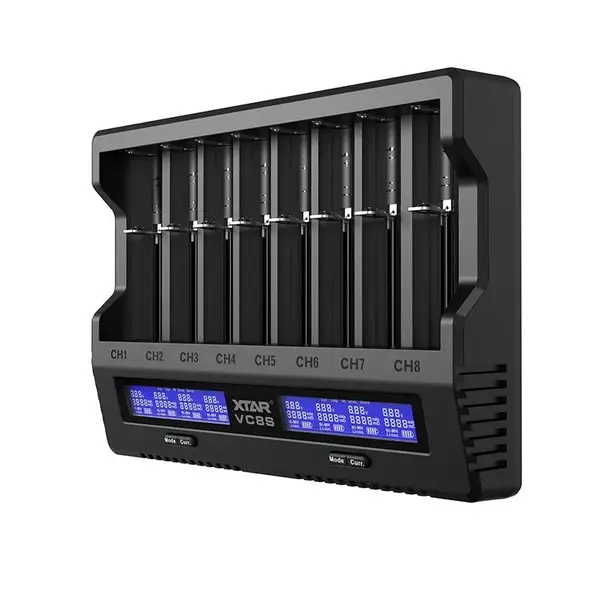

The VC8S is a professional microprocessor-controlled charger featuring a three-stage TC/CC/CV charging process and an LCD display. It charges 1-8 Li-ion (3.6V/3.7V) or Ni-MH cells of any capacity in sizes AAA/R03, AA/R6, 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18490, 18500, 18650, and 18700. The two outermost slots also support charging for R14, R20, 22650, 25500, and 26650 sizes, as well as protected 20700 and 21700 cells.

The Xtar VC8S charger features a backlit LCD screen that displays real-time status information for each charging slot. Displayed data includes battery voltage, charging current, charging time, and capacity delivered (mAh). The charger also indicates when the charging process is complete and alerts the user to any errors. A capacity measurement mode (Grade Mode) is also available, allowing for the assessment of actual battery capacity. Data on the charge processed can be used to measure battery capacity; Grade Mode enables verification of the battery's actual capacity. The charger performs an automatic test cycle--comprising charging, discharging, and recharging the cell--and then displays the measured capacity.
