SERVER
Server Memory Module KINGSTON
1 387,00 €
- Gamintojo kodas
- KSM56E46BD8KM-32HA
- Garantinis aptarnavimas
- 24 mėn.
- Garantija pagal įstatymą
- 2 metai
- Sandėlyje
- Užsakoma
- Pristatymas
- Teirautis
1
1 387,00 €
Aprašymas

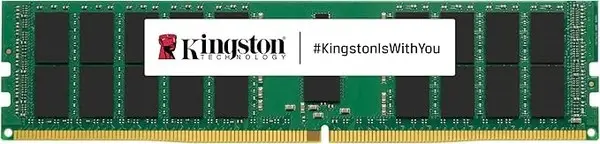

Kingston KSM56E46BD8KM-32HA
is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x72 ECC (x36, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
Specifikacija
| Summary | Kingston Technology KSM56E46BD8KM-32HA. Component for: Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC, Product colour: Black, Green |
|---|---|
| Category Code | MES |
| Unit Box Height | 0.007 |
| Unit Box Length | 0.045 |
| Unit Box Width | 0.145 |
| Internal memory type | DDR5 |
| Internal memory | 32 GB |
| Buffered memory type | Unregistered (unbuffered) |
| CAS latency | 46 |
| Memory voltage | 1.1 V |
| Memory form factor | 288-pin DIMM |
| Memory data transfer rate | 5600 MT/s |
| Component for | Server |
| Memory layout (modules x size) | 1 x 32 GB |
| ECC | Yes |
| Memory ranking | 2 |
| Module configuration | 4096M x 72 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row Precharge Time (TRP) | 16 |
| On-Die ECC | Yes |
| Programming power voltage (VPP) | 1.8 V |
| SPD profile | Yes |
| Product colour | Black/Green |
| Lead plating | Gold |
| JEDEC standard | Yes |
| Operating temperature (T-T) | 0 - 95 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Compliance certificates | RoHS |
| Doesn't contain | Halogen |
| Sustainability compliance | Yes |
| Width | 133.35 mm |
| Height | 31.25 mm |
| Unit Calculated Weight | 0.029 kg |
| Product Net Weight | 0.03 kg |
| Unit Calculated Volume | 4.567E-05 cubm |
| Units per Shipping Box | 1 |
| Shipping Box Weight | 0.029 kg |
| Unit Width | 14.5 cm |
| Shipping Box Height | 0.7 cm |
| Unit Depth | 4.5 cm |
| Shipping Box Depth | 4.5 cm |
| Unit Height | 0.7 cm |
| Shipping Box Width | 14.5 cm |
| Name | SERVER MEMORY 32GB DDR5-5600/KSM56E46BD8KM-32HA KINGSTON |
Kainų istorija
| 2026-10-20 | 1 387,00 € |
| 2026-10-19 | 1 384,00 € |
| 2026-10-16 | 1 191,00 € |
| 2026-10-15 | 1 193,00 € |
| 2026-10-14 | 1 196,00 € |
| 2026-10-13 | 1 195,00 € |
| 2026-10-12 | 1 189,00 € |
| 2026-10-09 | 1 192,00 € |
Mažiausia kaina per paskutines 30 dienų: 1 051,00 €
Klausimai
Demonstracinė versija: prekė importuota į Saleor iš viešo skytech.lt katalogo. Prekė skytech.lt
Panašios prekės
Nuotrauka ruošiama
MICRONMicron 32GB DDR5-6400 RDIMM 1Rx4 PC5-51200 CL52 1.1V/(12V ext.) ECC Y52K-16Gb (Tray)Užsakoma
1 871,00 €
arba nuo 77,96 €/mėn.
SILICONSILICON POWER Server Memory DDR5 RDIMM 32GB 1x32GB 5600MHz CL46 2Gx8 DR ECC REG INTELUžsakoma
994,00 €
arba nuo 41,42 €/mėn.
G.SKILLG.Skill Aegis 5 F5-6400R3239G32GQ4-G5N atminties modulis 128 GB 4 x 32 GB DDR5 6400 MT/s 288-pin DIMM ECCUžsakoma
6 153,00 €
arba nuo 256,38 €/mėn.
MICRONMICRON DDR5 RDIMM 32GB 2Rx8 6400 CL52 (16Gbit) (Single Pack)Sandėlyje
1 871,00 €
arba nuo 77,96 €/mėn.
SAMSUNGSamsung RDIMM 128GB DDR5 2Rx4 5600MHz PC5-44800 ECC REGISTERED M321RAJA0MB2-CWMUžsakoma
5 490,00 €
arba nuo 228,75 €/mėn.
Nuotrauka ruošiama
GOODRAMGoodram UDIMM ECC 48GB DDR5 2Rx8 5600MHz PC5-44800 W-MEM5600E5D848GUžsakoma
1 456,00 €
arba nuo 60,67 €/mėn.

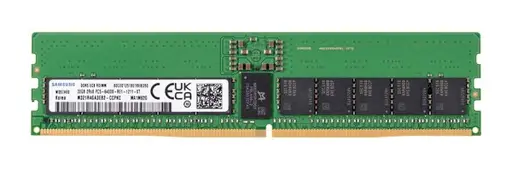

SERVERServer Memory Module SAMSUNGSandėlyje
