RJ45 cat.6a connector DN-93638

5,19 €

Gamintojo kodas: DN-93638
Garantinis aptarnavimas: 24 mėn.
Garantija pagal įstatymą: 2 metai
Sandėlyje: 5+
Pristatymas: 6-7 d.d.

5,19 €

Kurjeriu3,99 € · Venipak, DPD Atsiimti salone nemokamaiVilnius, Kaunas, Klaipėda, Plungė IšsimokėtinaiArtea, GF bankas Garantija24 mėn. gamintojo garantija

Aprašymas

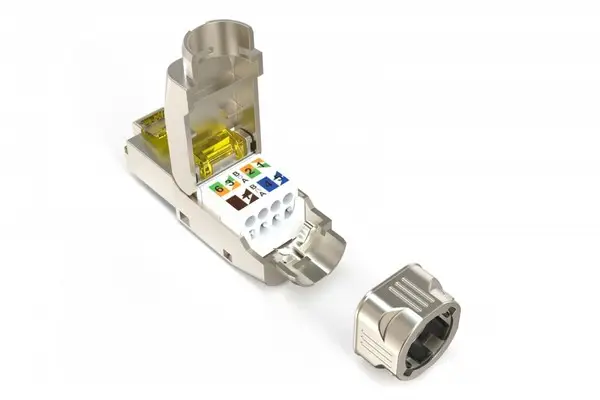

The DIGITUS Category 6A plug is a modern, high-quality RJ45 connector that is extremely easy to use, reliable, and saves installers time. Quick installation takes just 60 seconds without the need for special tools. Suitable for all networks, from voice to 10 Gigabit Ethernet.

High-performance data transmission - supporting transmission speeds of up to 10 Gbps ensures maximum network performance.
Optimal shielding - the shielded design reduces electromagnetic interference, ensuring stable signal quality.
Tool-free installation - the innovative design allows for quick and easy installation without the need for special tools.
Rugged construction - a durable housing and high-quality materials ensure reliable operation even in demanding environments.

Specifikacija

Connector	RJ-45
Quantity in unit package	1
Accessories included	1 x shielded, tool-free connector 1 x strain relief with nut 1 x harness manager with wiring information 1 x installation instructions
Other features	Transmission characteristics: Category 6A, 10GBase-T, 500 MHzISO/IEC 11801 3rd Ed., EN 50173-1, IEC 60603-7-51Suitable for PoE/PoE/4PPoE (IEEE 802.3af, 3at, 3bt) General specifications: Cable assembly via LSA blade terminal, color-coded according to EIA/TIA 568 A&BCable strain relief and fixation using a nutTool-free mounting connectionRJ45 plug, 8P8C360° shielded contact Technical specifications: Housing material: Zinc die-castContact material: Phosphor bronzeContact shielding: Nickel, gold-plated 0.5 Physical Specifications: Insertion Force: Max. 30 N (per IEC 60603-7-5)Operating Temperature Range: -20°C to +70°C (ISO/IEC 11801, ANSI/TIA 568 C.2)Insertion Cycles: >1500 (ISO/IEC 11801, IEC 60603-7-5)Copper Conductor Diameter: AWG (27/7 - 22/1), stranded and solidTested with AWG 22/1 fixed installation cableElectrical Dielectric Strength: 1000 V DC (contact/contact), 1500 V DC (contact/ground)
