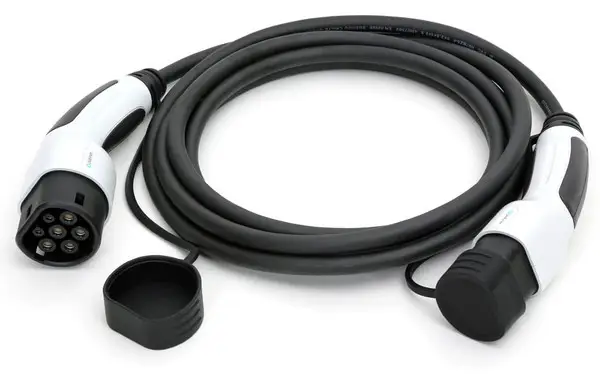

Platinet electric car charging cable Type-2 22kW 5m

Platinet Type 2 – The Type 2 electric car charging cable allows you to charge your electric car at public and home Type 2 charging stations with a power of up to 22 kW. The three-phase 32 A cable is 7 meters long, providing enough freedom of movement when charging, and the included carrying bag makes it convenient to take with you on longer trips.

• Electric vehicle charging cable with Type 2 connectors
• Compatible with charging stations and electric vehicles that support Type 2 charging
• Length: 7 m
• Three-phase charging
• Rated current: 32 A
• Rated voltage: 480 V
• Maximum charging power: up to 22 kW
• Cable specification: 5 × 6 mm² + 2 × 0.5 mm²
• OD (mm): 16.5 +/- 0.4
• Outer diameter: 16.5 mm (±0.4 mm)
• Protection rating: IP54 (connected)
• Flame resistance class: 94 V-0
• Insulation resistance: > 1000 MΩ (DC 500 V)
• Terminal temperature rise: < 50 K
• Maximum voltage withstand: 2000 V
• Contact resistance: max. 0.5 mΩ
• Connection force: > 45 N < 80 N
• Operating temperature: -35 to 50 °C
• Carrying bag included
