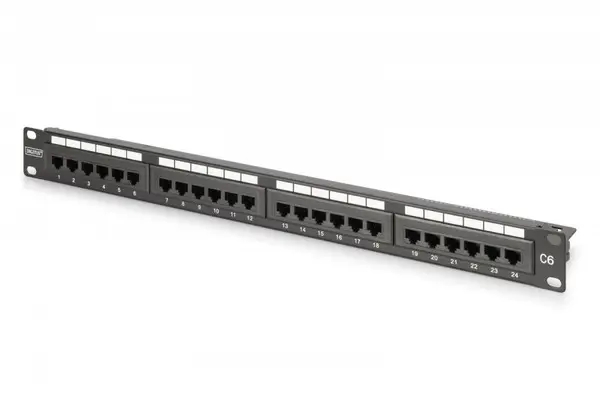

Patch panel CAT 6 DN-91624U-CR

The DIGITUS CAT 6 patch panel is manufactured to Link Performance Class E requirements for frequencies up to 250 MHz, ISO/IEC 11801 and EN 50173, and is UL certified. The housing is made of 1.5 mm galvanized cold-rolled steel, making it ideal for mounting in a 19" rack.

Applications: Up to 250 MHz, 1GBase-T, PoE
Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C

General Features:

• Suitable for mounting in a 483 mm (19") rack
• RJ45, 8P8C jacks
• Cable installation using LSA strips, color-coded according to EIA/TIA 568 A & B
• Cable retention using quick-release fasteners Latches

Mechanical Properties:

• Housing Material: 1.5 mm galvanized, cold-rolled steel compliant with EN1.4301, UNS S30400, AISI 304, and LMSAD110
• RJ45 Jack Material: ABS UL 94V-0
• RJ45 Jack: Nickel-plated phosphor bronze, 0.5 gold-plated contact
• RJ45 Shielding: Nickel-plated bronze
• LSA Cutting Clamp: Krone LSA+, UL 94V-2, zinc-plated phosphor bronze
• Ground Wire: Not included
• PCB: FR4, UL 94V-0

Physical Properties:

• Insertion Force: Max. 30 N (IEC 60603-7-5)
• Tensile Load: 7.7 kg between Jack and Plug
• Operating temperature: -20°C to +70°C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568°C)
• Socket mating cycle: > 750 according to ISO/IEC 11801, IEC 60603-7-5
• Crimp: > 200 according to ISO/IEC 11801, IEC 60603-7-5
• Wire acceptance: 22-26 AWG solid and stranded wires
• Insulation resistance: > 500 MOhm
• Contact resistance: < 20 milliOhms
• Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
