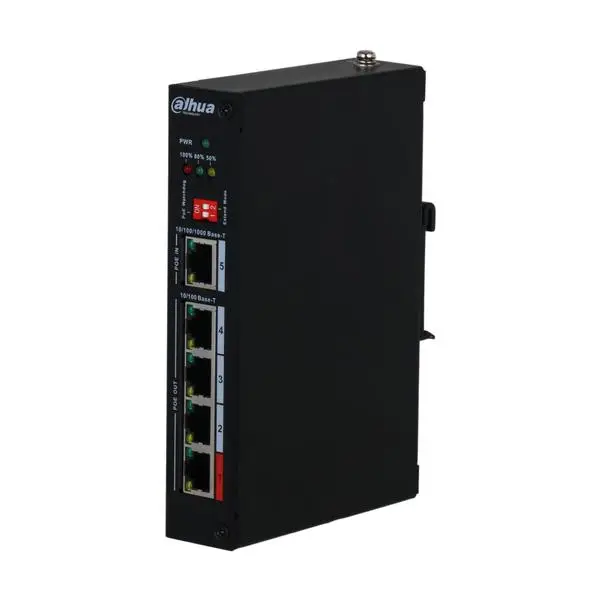

NET POE EXTENDER/PFT1500 DAHUA

97,19 €

Gamintojo kodas: PFT1500
Garantinis aptarnavimas: 36 mėn.
Garantija pagal įstatymą: 2 metai
Sandėlyje: 5+
Pristatymas: 2-3 d.d.

97,19 €

Kurjeriu3,99 € · Venipak, DPD Atsiimti salone nemokamaiVilnius, Kaunas, Klaipėda, Plungė IšsimokėtinaiArtea, GF bankas Garantija36 mėn. gamintojo garantija

Aprašymas

The Device is a hardened PoE extender. It works together with conventional PoE devices to extend their maximum base transmission distance to 350 meters.

4× 100 Mbps PoE Ethernet ports, 1 × 1000 Mbps PoE Ethernet port
All ports meet the requirements of IEEE802.3af and IEEE802.3at standards. The red ports also conform with Hi-PoE and IEEE802.3bt standards
250 m long-distance PoE transmission, which can be enabled by the DIP switch
PoE Watchdog for real-time detection of terminal device status
Fanless
Full-metal
Lightning Protection: common mode: 4 kV, differential mode: 2 kV
Desktop mount and DIN-rail mount

Specifikacija

Summary	Dahua Technology PFT1500. Type: Network transmitter, Maximum transfer distance: 250 m, Data transfer rate: 1000 Mbit/s. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u,.... Host interface: RJ-45. Product colour: Black, Housing material: Metal, Mounting type: Desk. Power consumption (typical): 5 W, Power consumption (transmitter) (max): 90 W, Total Power over Ethernet (PoE) budget: 90 W
Category Code	NEX
Type	Network transmitter
Maximum transfer distance	250 m
Data transfer rate	1000 Mbit/s
Ethernet LAN data rates	10/100/1000 Mbit/s
Flow control support	Yes
Jumbo frames support	Yes
MAC address table	4000 entries
MTBF (transmitter)	66.37 h
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Host interface	RJ-45
Ethernet LAN (RJ-45) ports	5
Power over Ethernet (PoE) ports quantity	4
Product colour	Black
Housing material	Metal
Mounting type	Desk
LED indicators	PoE
Quantity per pack	1 pc(s)
Power consumption (typical)	5 W
Power consumption (transmitter) (max)	90 W
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	90 W
Operating temperature (T-T)	-30 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (transmitter)	5 - 95 %
Width	150 mm
Depth	100 mm
Height	30 mm
Weight	470 g
Package type	Box
Package width	265 mm
Package depth	238 mm
Package height	76 mm
Package weight	650 g
Sustainability compliance	Yes
Compliance certificates	CE/Federal Communications Commission (FCC)
Unit Calculated Weight	0.11 kg
Unit Calculated Volume	0.000736 cubm
Name	NET POE EXTENDER/PFT1500 DAHUA
Model name	PFT1500
