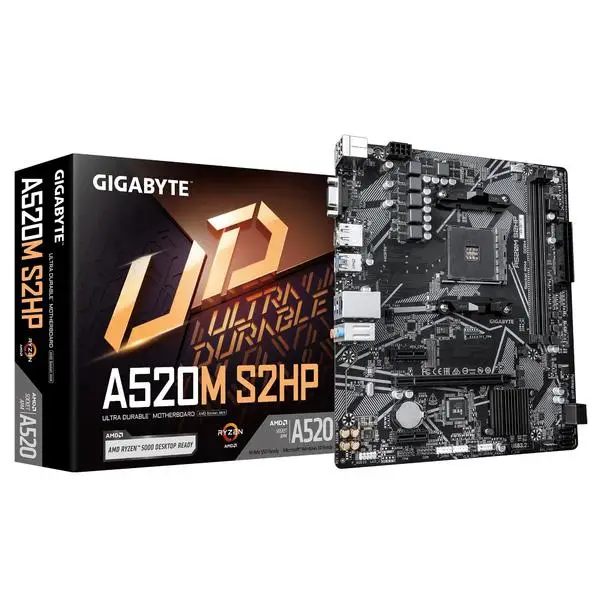

Mainboard GIGABYTE AMD A520

63,19 €

Gamintojo kodas: A520M S2HP 1.0
Garantinis aptarnavimas: 36 mėn.
Garantija pagal įstatymą: 2 metai
Sandėlyje: 5+
Pristatymas: 2-3 d.d.

63,19 €

Kurjeriu3,99 € · Venipak, DPD Atsiimti salone nemokamaiVilnius, Kaunas, Klaipėda, Plungė IšsimokėtinaiArtea, GF bankas Garantija36 mėn. gamintojo garantija

Aprašymas

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
4+2 Phases Hybrid Digital VRM Solution with Low RDS(on) MOSFETs
Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
Fast Networks: GbE LAN
HDMI, Display Port, D-sub Ports for Multiple Display
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Anti-Sulfur Resistors Design

Specifikacija

Summary	GIGABYTE A520M S2HP Motherboard. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA, RAID levels: 0, 1, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Category Code	MBA
Unit Box Height	0.055
Unit Box Length	0.27
Unit Box Width	0.23
Motherboard chipset	AMD A520
Product colour	Black
Component for	PC
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Motherboard chipset family	AMD
Processor manufacturer	AMD
Processor socket	Socket AM4
Compatible processor series	AMD Ryzen 3000 Series
Maximum number of SMP processors	1
Supported processor sockets	Socket AM4
Supported memory types	DDR4-SDRAM
Number of memory slots	2
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speeds	2133/2400/2667/2933/3200/3333/3600/4866 MHz
Supported memory clock speed (max)	3200 MHz
Maximum internal memory	64 GB
Supported storage drive interfaces	M.2,PCI Express 3.0,SATA
RAID support	Yes
RAID levels	0/1/10
On-board graphics card	No
HDCP	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
ATX Power connector (24-pin)	Yes
Power fan connector	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
RGB LED pin header	Yes
Number of RGB LED pin headers	4
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
HDMI ports quantity	1
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Wi-Fi	No
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	1
Number of M.2 (M) slots	1
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Clear CMOS button	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Country of origin	China
Products per shipping (inner) case	1 pc(s)
Battery weight	3 g
Lithium weight per battery	0.07 g
Package width	265 mm
Number of battery cells	1
Package depth	235 mm
Package height	52 mm
Battery capacity	220 mAh
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Package weight	772 g
Battery type	CR2032
Width	244 mm
Depth	205 mm
Height	35 mm
Batteries included	Yes
Warranty period	3 year(s)
Unit Calculated Weight	0.78 kg
Unit Calculated Volume	0.004187 cubm
Units per Shipping Box	10
Shipping Box Weight	7.8 kg
Unit Width	23 cm
Shipping Box Height	26 cm
Unit Depth	27 cm
Shipping Box Depth	56.5 cm
Unit Height	5.5 cm
Shipping Box Width	28.5 cm
Name	MB AMD A520 SAM4 MATX/A520M S2HP 1.0 GIGABYTE
