KVM Extender USB True 4K HDMI Cat6

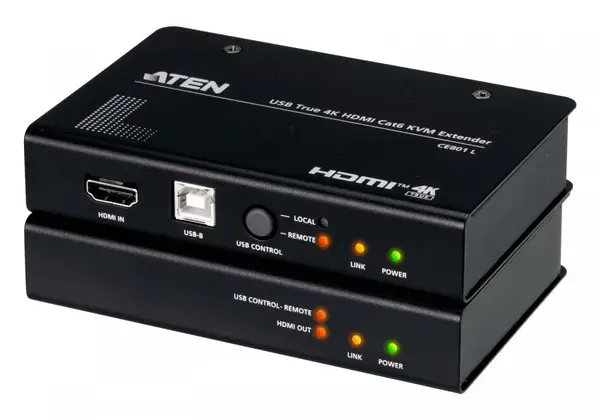

CE801 True 4K HDMI Cat 6 USB KVM Extender (4K @ 70m)

This extender kit allows for long-distance transmission of multiple signals, as well as support for two consoles.

The CE801L and CE801R are USB HDMI Cat 6 KVM extenders designed to bridge the gap between local and remote consoles, ensuring smooth and efficient KVM operations. By connecting a source computer to the CE801L, you can enjoy instant KVM control on the CE801R remote consolewith uncompromised True 4K video, crystal-clear digital audio, high-speed USB peripheral data, and uninterrupted serial control up to 70 meters, all via a single Cat 6 connection. When it comes to simplified KVM extension and ergonomic remote access with equipment safely placed away from the workspace, the CE801 speaks for itself.

True 4K KVM Extender up to 70m
The CE801 allows KVM control up to 70 meters via a Cat 6 connection, transmitting stunning True 4K video with HDR, along with USB data, digital audio, and serial control between local and remote consoles.

FHD KVM Extender with Long Range Up to 100m
With its long-range mode, the CE801 allows you to extend your KVM up to 100 meters via a Cat 6 connectioneasily delivering crisp 1080p video.

Dual Console Access with Prioritized KVM Control
Pressing a button on the CE801L gives the local console priority KVM access to the source computer at any time (local mode). Pressing the button again releases this priority (auto mode), allowing KVM access from either the local or remote consolewhichever gains control first.

Optimal Video with EDID Switching
To ensure optimal output quality at both the local and remote consoles, the EDID switches on the CE801L can be adjusted to configure the EDID for both HDMI outputs.

RS-232 Serial Communication for Expanded Control
The CE801R features a serial port for connecting a serial devicesuch as a touchscreen or barcode scannerthat can be remotely communicated via RS-232 commands from a serial terminal (or PC) connected to the CE801L, facilitating real-time device interaction and data transmission between local and remote consoles.

Secure Installation for Reliable Power
The power supply is secured with a screw lock on the DC jack, ensuring stable power and preventing accidental disconnection.

Rack-Mount Design
The KVM extenders are compact and rack-mountable, providing flexibility and saving space.

• Extends HDMI video, USB keyboard/mouse control, embedded audio, and RS-232 control signals up to 70m using a Cat 6 cable.
• Long Range Mode - Extends 1080p to 100m
• Supports resolutions up to 3840 x 2160 @ 60Hz (4:4:4) with HDCP 2.2/2.3 compliance
• Dual USB keyboard/mouse console - Switch control permissions between remote and local units using the USB control mode button
• HDR 10 support for enhanced image quality
• Widescreen format support
• Supports digital audio formats such as 7.1-channel Dolby and DTS
• Plug-and-play with no software or driver installation required
• Built-in 8KV/15KV ESD protection
• Rack-mountable
• Dc jack with screw lock ensures a stable and secure connection
