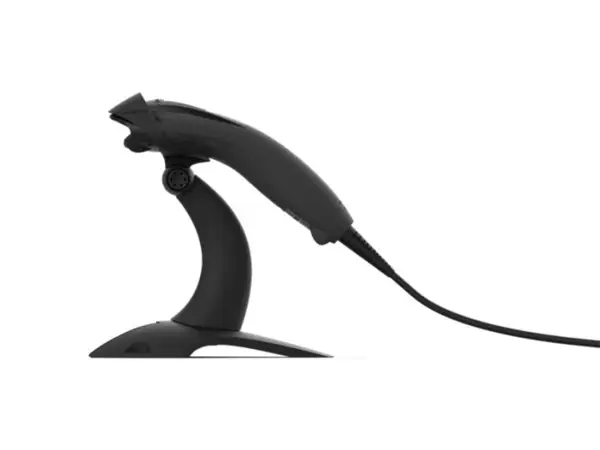

Honeywell Voyager XP 1400G (1400GSR-2USB-1E) Brūkšninių kodų skaitytuvas

Technical Specifications

Scanner Dimensions (L x W x H):

180 mm x 66 mm x 43 mm (7.1 in x 2.6 in x 1.7 in)

Scanner Weight:

119 g (4.2 oz)

Input Voltage:

4.0V DC to 5.5V DC

Operating Power:

2 W (400 mA @ 5V DC)

Standby Power:

0.45 W (90 mA @ 5V DC)

Host System Interfaces:

USB certified (USB type C cable is available), Keyboard Wedge, RS-232

Keyboard Support:

Support 84 international keyboards

User indicators:

Good Decode LED, beeper (Adjustable tone and volume)

SCAN PERFORMANCE

Scan Pattern:

Area Image (1040 x 720 pixel array)

Frame Per Second:

60FPS

Motion Tolerance:

70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus

Print contrast:

15%

Scan Angle:

Horizontal: 39.2°
Vertical: 27.4°

Roll, Pitch, Skew:

±180°, ±65°, ±70°

Illumination:

Warm white LED (CCT 2700K)

Aimer:

Red dot LED, 624nm peak wavelength

Decode Capabilities:

1D: Code 39, code 128, code 93, EAN, UPC, code 11, code 32 Pharmaceutical,
codabar, China Post, GS1 databar
2D: Aztec, Data Matrix, QR/Micro QR code, Maxicode, Chinese sensible (HanXin) code, postal code, PDF417, DotCode,
Digital Watermarking: Digimarc
OCR: OCR A, OCR B, MICR E-13B and SEMI Font, in a 6 to 60 points OCR typeface
Note: Decode capabilities dependent on configuration.

REGULATORY

EMC:

EN55032, EN55035, EN61000-3-2, EN61000-3-3, FCC Part 15 Subpart B,
ICES-003 Issue 7

Safety, Health and Environmental Compliance:

EN62368-1, IEC 62368-1, IEC62471, IEC-63000(ROHS), UL62368-1,
CSA C22.2 NO. 62368-1

Accessories:

stands, wall mount holder, power supplies, cables

Utilities and Management:

EZConfig, SMU, Total Freedom, Scanner Edge, SDKs, Various Drivers
