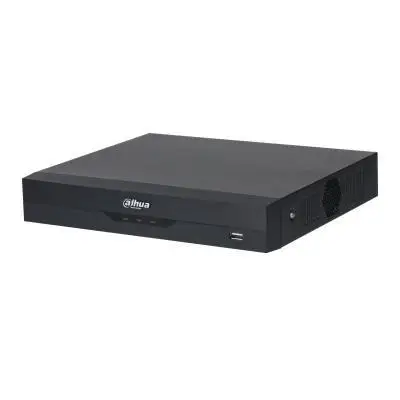

DVR 4CH HDCVI PENTABRID AI/XVR5104HS-I3/T DAHUA

158,99 €

Gamintojo kodas: XVR5104HS-I3/T
Garantinis aptarnavimas: 36 mėn.
Garantija pagal įstatymą: 2 metai
Sandėlyje: 5+
Pristatymas: 2-3 d.d.

158,99 €

Kurjeriu3,99 € · Venipak, DPD Atsiimti salone nemokamaiVilnius, Kaunas, Klaipėda, Plungė IšsimokėtinaiArtea, GF bankas Garantija36 mėn. gamintojo garantija

Aprašymas

4-ch Analog Video Input, Max. 5M-N@25fps/1080p@25fps Encoding Capability
Max. 6-ch IP Video Input (Up to 6MP)
4-ch Two-way Talk
AI Functions: 2-ch AcuPick, 2-ch FR, 4-ch Perimeter Protection, 4-ch SMD, 4-ch AI Coding
1 Bay. Up to 16TB for Each HDD Storage Capacity

Specifikacija

Summary	Dahua Technology XVR5104HS-I3/T. Product colour: Black, Maximum video resolution: 1920 x 1080 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video input channels: 4 channels, Audio input: 1 RCA, Audio output: 1 RCA. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P. HDD interface: SATA, Maximum HDD capacity: 16 TB. Power supply type: DC, DC voltage: 12 V, Power consumption (typical): 4 W
Category Code	STD
Unit Box Height	0.083
Unit Box Length	0.342
Unit Box Width	0.283
Video input channels	4 channels
BNC input ports	4
BNC output ports	1
HDMI ports quantity	1
VGA (D-Sub) output ports	1
Audio input	1 RCA
Audio output	1 RCA
USB 2.0 ports quantity	2
RS-485 ports	1
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Number of HDDs supported	1
HDD interface	SATA
Maximum HDD capacity	16000 GB
Maximum video resolution	1920 x 1080 pixels
Audio formats supported	G.711 µ-law/G.711 A-law/PCM
Video compression formats	H.264/H.264+/H.265/H.265+
Backup function	Yes
Video capturing speed	30 fps
Video loss detection	Yes
Video motion detection	Yes
Analog signal format system	NTSC/PAL
Audio system	2-way
Channels quantity	4 channels
Dual stream support	Yes
Maximum frame rate	60 fps
Operating system installed	Embedded LINUX
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720
Product colour	Black
PTZ control	Yes
Video streaming	Yes
Rack capacity	1U
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024
Power supply type	DC
DC voltage	12 V
Power consumption (typical)	4 W
Width	260 mm
Depth	237.9 mm
Height	47.6 mm
Weight	840 g
Package width	344 mm
Package depth	89 mm
Package height	287 mm
Package weight	1410 g
Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	-10 - 55 °C
Unit Calculated Weight	1.56 kg
Product Net Weight	0.84 kg
Unit Calculated Volume	0.01063 cubm
Units per Shipping Box	10
Shipping Box Weight	15.6 kg
Unit Width	28.3 cm
Shipping Box Height	32 cm
Unit Depth	34.2 cm
Shipping Box Depth	91 cm
Unit Height	8.3 cm
Shipping Box Width	36.5 cm
Name	DVR 4CH HDCVI PENTABRID AI/XVR5104HS-I3/T DAHUA
Model	XVR5104HS-I3/T
