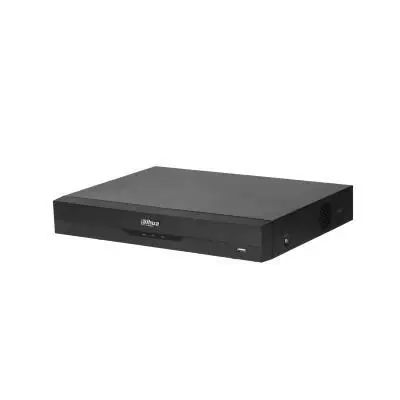

DVR 4CH HDCVI PENTABRID AI/XVR5104HE-I3 DAHUA

179,59 €

Gamintojo kodas: DH-XVR5104HE-I3
Garantinis aptarnavimas: 36 mėn.
Garantija pagal įstatymą: 2 metai
Sandėlyje: 2
Pristatymas: 2-3 d.d.

179,59 €

Kurjeriu3,99 € · Venipak, DPD Atsiimti salone nemokamaiVilnius, Kaunas, Klaipėda, Plungė IšsimokėtinaiArtea, GF bankas Garantija36 mėn. gamintojo garantija

Aprašymas

H.265+/H.265 dual-stream video compression
> Supports Full-channel AI-Coding
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 6 channels IP camera inputs, each channel up to 6MP; Max 32 Mbps incoming bandwidth
> Up to 1 channel video stream ( analog channel ) Perimeter Protection
> Up to 4 channels video stream ( analog channel ) SMD Plus
> Up to 1 channel video stream (analog channel ) human face recognition
> IoT & POS functionalities

Specifikacija

Summary	Dahua Technology DH-XVR5104HE-I3. Product colour: Black, Maximum video resolution: 1920 x 1080 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video input channels: 4 channels. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP..., Number of users: 128 user(s). HDD interface: SATA, Maximum HDD capacity: 6 TB. Power supply type: DC, DC voltage: 12 V, Power consumption (max): 4 W
Category Code	STD
Unit Box Height	0.305
Unit Box Length	0.375
Unit Box Width	0.115
Video input channels	4 channels
Alarm input channels	8
BNC input ports	4
HDMI ports quantity	1
VGA (D-Sub) output ports	1
Audio input	4
Audio output	1
USB 2.0 ports quantity	2
Relay outputs	3
RS-485 ports	1
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Number of users	128 user(s)
Supported network protocols	HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search
Number of HDDs supported	1
HDD interface	SATA
Maximum HDD capacity	6000 GB
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264/H.264+/H.265/H.265+
Internal	No
Backup function	Yes
Video loss detection	Yes
Video motion detection	Yes
Analog signal format system	NTSC/PAL
Audio system	2-way
Bit rate	6144 Kbit/s
Channels quantity	4 channels
Dual stream support	Yes
LED indicators	Yes
Maximum frame rate	60 fps
Multi-display modes	4/6
Multi-display supported	Yes
Operating system installed	Linux
Playback modes	Fast/Next/Pause/Play/Previous/Repeat/Shuffle/Slow/Stop
Playback resolutions supported	1920 x 1080 1280 x 1024 1280 x 720
Product colour	Black
PTZ control	Yes
Video streaming	Yes
Rack capacity	1U
Certification	FCC 15 / B EN 60950-1/IEC 60950-1 EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024
Built-in processor	Yes
Power supply type	DC
DC voltage	12 V
Power consumption (max)	4 W
Width	325 mm
Depth	256.6 mm
Height	55 mm
Weight	1310 g
Package weight	1770 g
Built-in display	No
Operating temperature (T-T)	-10 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Compliance certificates	CE
Sustainability compliance	Yes
Unit Calculated Weight	1.8 kg
Product Net Weight	1.31 kg
Unit Calculated Volume	0.01315 cubm
Units per Shipping Box	1
Shipping Box Weight	1.8 kg
Unit Width	11.5 cm
Shipping Box Height	30.5 cm
Unit Depth	37.5 cm
Shipping Box Depth	37.5 cm
Unit Height	30.5 cm
Shipping Box Width	11.5 cm
Name	DVR 4CH HDCVI PENTABRID AI/XVR5104HE-I3 DAHUA
