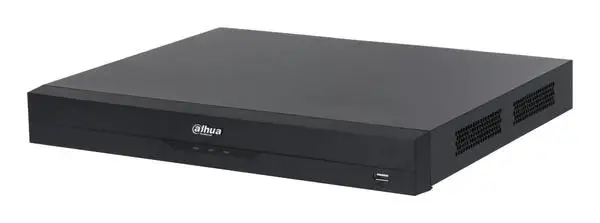

DVR 32CH HDCVI PENTABRID/XVR5232AN-4KL-I3/T DAHUA

1 405,00 €

Gamintojo kodas: XVR5232AN-4KL-I3/T
Garantinis aptarnavimas: 36 mėn.
Garantija pagal įstatymą: 2 metai
Sandėlyje: 1
Pristatymas: 2-3 d.d.

1 405,00 €

Kurjeriu2,99 € · Venipak, DPD Atsiimti salone nemokamaiVilnius, Kaunas, Klaipėda, Plungė IšsimokėtinaiArtea, GF bankas Garantija36 mėn. gamintojo garantija

Aprašymas

32-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
12-channel AcuPick for analog channels which improves the efficiency of target retrieval
12-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
6-channel face recognition for analog channels which supports face comparison
32-channel SMD Plus for analog channels or 64-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
32-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
Supports HDCVI, AHD, TVI, CVBS and IP video input
Supports up to 64-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 256 Mbps
Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
Smart H.265+ and H.265 dual-stream video compression

Specifikacija

Summary	Dahua Technology XVR5232AN-4KL-I3/T. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video resolutions: 3840 x 2160,1920 x 1080,1280 x 720. Video input channels: 32 channels. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Supported network protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P, Ethernet LAN data rates: 10,100,1000 Mbit/s. Maximum HDD capacity: 16 TB
Category Code	STD
Unit Box Height	0.425
Unit Box Length	0.45
Unit Box Width	0.145
Video input channels	32 channels
BNC input ports	32
HDMI ports quantity	1
VGA (D-Sub) output ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Video RCA outputs	1
RS-485 ports	1
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet/Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10/100/1000 Mbit/s
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P
Number of HDDs supported	2
Maximum HDD capacity	16000 GB
Maximum video resolution	3840 x 2160 pixels
Audio formats supported	G.711 A-law/G.711u/PCM
Video compression formats	H.264/H.264+/H.265/H.265+
Backup function	Yes
Video loss detection	Yes
Video motion detection	Yes
Audio output channels	1.0 channels
Dual stream support	Yes
Graphical user interface (GUI)	Yes
Multi-display modes	1/16/25/36/4/8/9
Multi-display supported	Yes
Operating system installed	Embedded LINUX
Playback modes	Event/General/Instant/Smart/Tag
Product colour	Black
USB connectivity	Yes
Rack capacity	1U
Video resolutions	1280 x 720/1920 x 1080/3840 x 2160 pixels
Power supply type	DC
DC voltage	12 V
Power consumption (typical)	32 W
Width	375 mm
Depth	333.9 mm
Height	53 mm
Weight	2378 g
Package width	451 mm
Package depth	147 mm
Package height	425 mm
Package weight	3840 g
Quick start guide	Yes
Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	-20 - 60 °C
Compliance certificates	CE
Unit Calculated Weight	4.02 kg
Product Net Weight	2.378 kg
Unit Calculated Volume	0.02773 cubm
Units per Shipping Box	1
Shipping Box Weight	4.02 kg
Unit Width	14.5 cm
Shipping Box Height	42.5 cm
Unit Depth	45 cm
Shipping Box Depth	45 cm
Unit Height	42.5 cm
Shipping Box Width	14.5 cm
Name	DVR 32CH HDCVI PENTABRID/XVR5232AN-4KL-I3/T DAHUA
