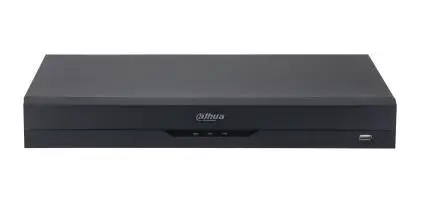

DVR 16CH HDCVI PENTABRID AI/XVR5216AN-I3/T DAHUA

314,49 €

Gamintojo kodas: XVR5216AN-I3/T
Garantinis aptarnavimas: 36 mėn.
Garantija pagal įstatymą: 2 metai
Sandėlyje: 1
Pristatymas: 2-3 d.d.

314,49 €

Kurjeriu3,99 € · Venipak, DPD Atsiimti salone nemokamaiVilnius, Kaunas, Klaipėda, Plungė IšsimokėtinaiArtea, GF bankas Garantija36 mėn. gamintojo garantija

Aprašymas

XVR5216AN-I3/T

16CH Penta-brid 5MP Value/1080P 1U 2HDDs WizSense Digital Video Recorder
- 16-ch Analog Video Input, Max. 5M-N@20fps/1080p@25fps Encoding Capability
- Max. 24-ch IP Video Input (Up to 6MP)
- 16-ch Two-way Talk
- AI Functions: 2-ch AcuPick, 2-ch FR, 4-ch Perimeter Protection, 16-ch SMD, 16-ch AI Coding
- 2 Bays. Up to 16TB for Each HDD Storage Capacity

Specifikacija

Summary	Dahua Technology XVR5216AN-I3/T. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video resolutions: 3840 x 2160,1920 x 1080,1280 x 720,1280 x 1024. Video input channels: 24 channels. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP;, Ethernet LAN data rates: 10,100,1000 Mbit/s. HDD interface: SATA, Maximum HDD capacity: 16 TB
Category Code	STD
Unit Box Height	0.35
Unit Box Length	0.42
Unit Box Width	0.13
Video input channels	24 channels
BNC input ports	16
HDMI ports quantity	1
VGA (D-Sub) output ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Video RCA outputs	1
RS-485 ports	1
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet/Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10/100/1000 Mbit/s
Supported network protocols	HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP;
Number of HDDs supported	2
HDD interface	SATA
Maximum HDD capacity	16000 GB
Maximum video resolution	3840 x 2160 pixels
Audio formats supported	G.711/G.711u/PCM
Video compression formats	H.264/H.264+/H.265/H.265+
Backup function	Yes
Video loss detection	Yes
Video motion detection	Yes
Audio bitrate	64 Kbit/s
Audio input channels	16 channels
Audio output channels	1.0 channels
Dual stream support	Yes
Graphical user interface (GUI)	Yes
Multi-display modes	1/16/25/4/8/9
Multi-display supported	Yes
Number of simultaneously playbacked channels	16 channels
Operating system installed	Embedded LINUX
Playback modes	Event/General/Instant/Smart/Tag
Product colour	Black
USB connectivity	Yes
Rack capacity	1U
Certification	CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Video resolutions	1280 x 1024/1280 x 720/1920 x 1080/3840 x 2160 pixels
Power supply type	DC
DC voltage	12 V
Power consumption (typical)	12 W
Width	375 mm
Depth	289.6 mm
Height	53 mm
Weight	1800 g
Package width	427 mm
Package depth	137 mm
Package height	356 mm
Package weight	2950 g
Quick start guide	Yes
Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	-20 - 60 °C
Compliance certificates	CE
Unit Calculated Weight	3.13 kg
Product Net Weight	1.8 kg
Unit Calculated Volume	0.0231 cubm
Units per Shipping Box	4
Shipping Box Weight	12.5 kg
Unit Width	13 cm
Shipping Box Height	37.5 cm
Unit Depth	42 cm
Shipping Box Depth	56 cm
Unit Height	35 cm
Shipping Box Width	44 cm
Name	DVR 16CH HDCVI PENTABRID AI/XVR5216AN-I3/T DAHUA
