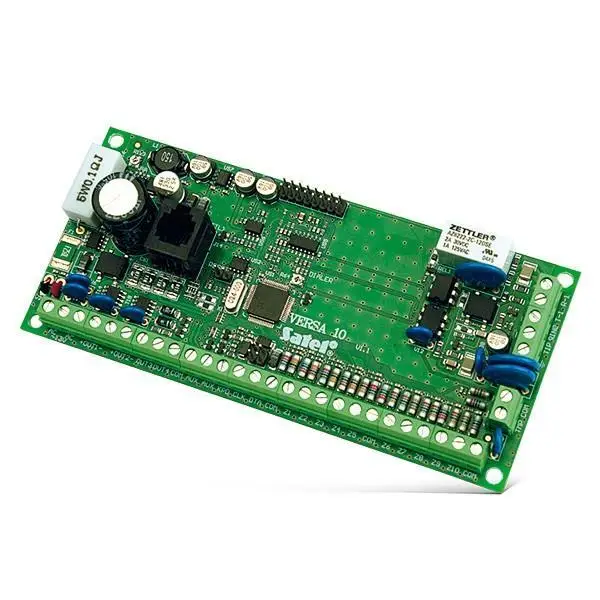

CONTROL PANEL 10-30ZONES/VERSA10 SATEL

• NO, NC, EOL, 2EOL/NO, 2EOL/NC zone configurations
• support for vibration and roller shutter detectors
• detectors supervision

additional tamper input

4 up to 12 programmable outputs

2 supply outputs

2 partitions:

• 3 arming modes for each partition
• arming/disarming by users or timer controlled

communication bus for keypads, readers and expansion modules

RS-232 port (RJ type socket) for panel programming built-in telephone dialer for:

• reporting (SIA, ContactID, other)
• personal messaging (8 telephone numbers, 64 text/16 voice messages)
• remote programming (built-in 300 bps modem)

support for GSM/GPRS communicator:

• SMS/GPRS reporting
• voice/SMS messaging

support for TCP/IP communicator:

• e-mail messaging
• TCP/IP reporting

system operation via:

• LCD or LED keypads (up to 6)
• proximity tags/cards (up to 6 readers)
• remote control key fobs

easy update of firmware for enhancing the panel with new features

support for 31 user codes:

• 30 standard users
• 1 installer

individual naming for easy system operation and management

timers:

• 4 timers with holidays support

event log with 2047 entries

automatic diagnostics of basic system components

built-in 2 A switching mode power supply:

• overload protection
• deep discharge protection
• battery charging supervision
