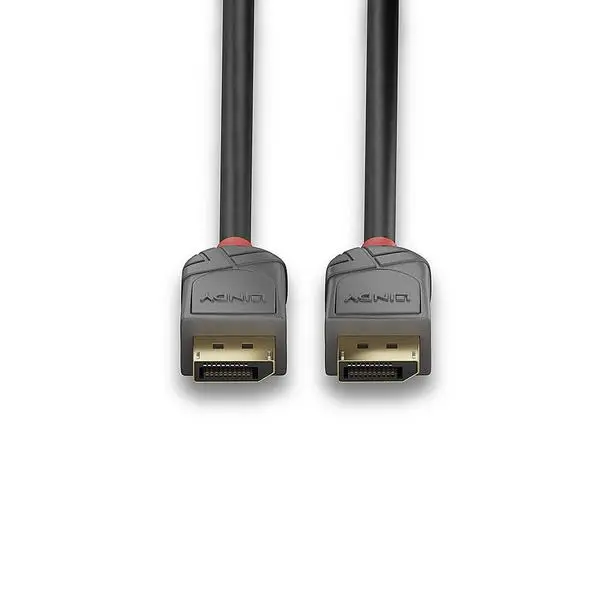

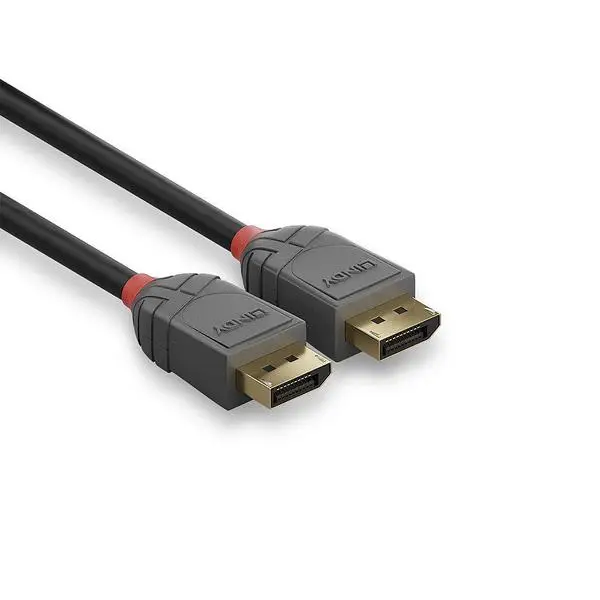

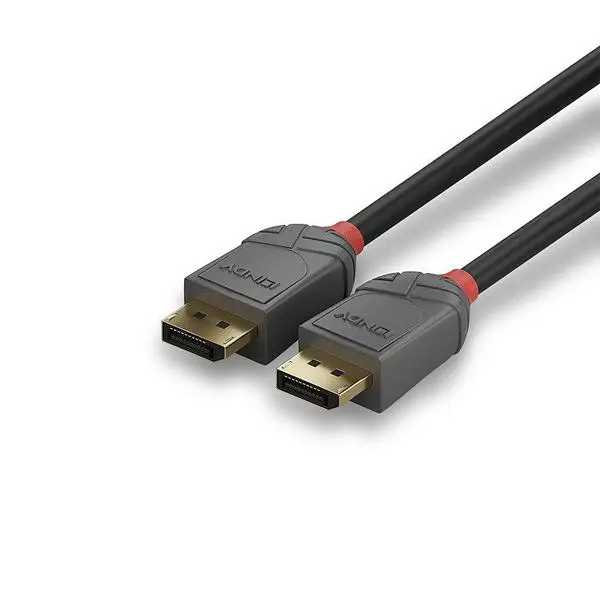

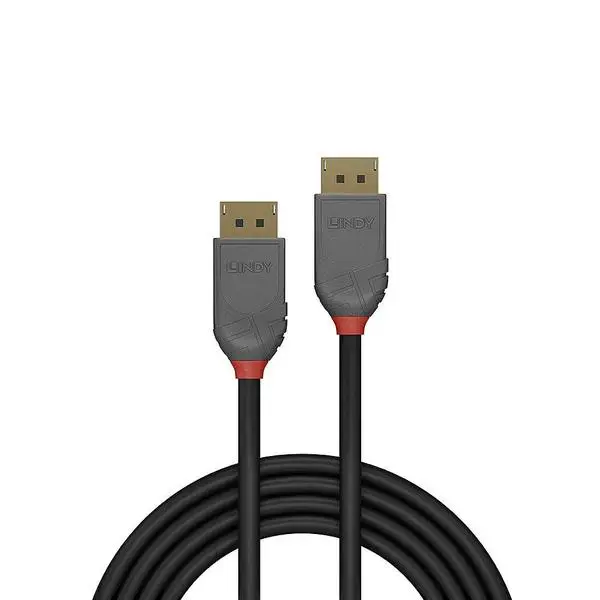

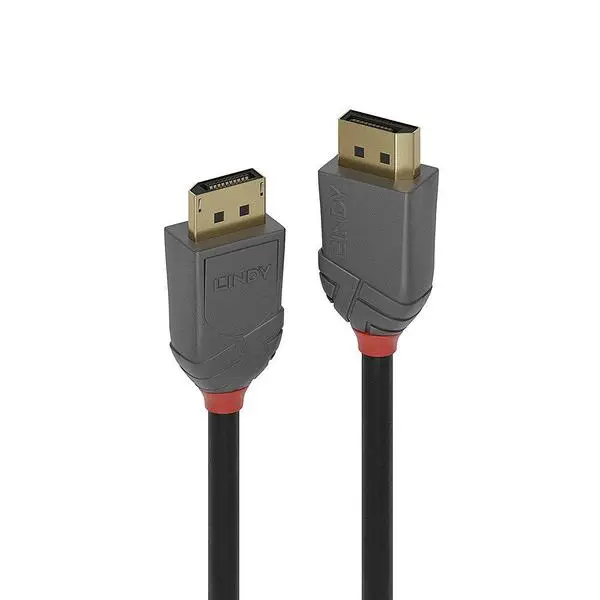

CABLE DISPLAY PORT 2M/ANTHRA 36482 LINDY

Rekomenduojame

10,79 €

Gamintojo kodas: 36482
Garantinis aptarnavimas: 120 mėn.
Garantija pagal įstatymą: 2 metai
Sandėlyje: 1
Pristatymas: 2-3 d.d.

10,79 €

Kurjeriu3,99 € · Venipak, DPD Atsiimti salone nemokamaiVilnius, Kaunas, Klaipėda, Plungė IšsimokėtinaiArtea, GF bankas Garantija120 mėn. gamintojo garantija

Aprašymas

From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@144Hz 4:2:2 10bit and HDCP are supported. DisplayPort 1.4 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.

Anthra Line DisplayPort cables are available in lengths from 0.5m to 5m.

Professional choice DisplayPort 1.4 cable for commercial and high performance AV and IT installations
Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit including 4K 4096x2160@144Hz 4:2:2 10bit
Robust ABS housing 24K gold plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper 28AWG conductors
DisplayPort 1.4, 32.4Gbps; 10 year warranty

Specifikacija

Summary	Lindy 2m DisplayPort 1.4 Cable, Anthra Line. Cable length: 2 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Certification: RoHS, REACH, UL. Cable diameter: 7.3 mm, Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm, Bend radius (min): 5.84 cm. Package type: Polybag. Depth: 38.9 mm, Height: 13.6 mm, Width: 21 mm
Category Code	CDP
Unit Box Height	0.022
Unit Box Length	0.14
Unit Box Width	0.14
Connector 1	DisplayPort
Connector 1 gender	Male
Connector 1 form factor	Straight
Connector 2	DisplayPort
Connector 2 gender	Male
Connector 2 form factor	Straight
Connector contacts plating	Gold
Cable length	2 m
DisplayPort version	1.4
Maximum resolution	7680 x 4320 pixels
Supported graphics resolutions	4096 x 2160/7680 x 4320
Product colour	Black
Cable material	Tinned copper
Cable shielding	Copper
Jacket material	Polyvinyl chloride (PVC)
Connector housing material	Acrylonitrile butadiene styrene (ABS)
AWG wire size	28
Data transfer rate	32.4 Gbit/s
Connector material	Gold
Contact material	Phosphor bronze
Cable type	Round cable
Colour sampling	4:2:2
Nominal attenuation	100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
Operating temperature (T-T)	-20 - 80 °C
Storage temperature (T-T)	-25 - 85 °C
Certification	RoHS, REACH, UL
Cable diameter	7.3 mm
Connector 1 dimensions (WxDxH)	21 x 38.9 x 13.6 mm
Bend radius (min)	58.4 mm
Package type	Polybag
Harmonized System (HS) code	84733080
Depth	38.9 mm
Height	13.6 mm
Width	21 mm
Unit Calculated Weight	0.15 kg
Product Net Weight	0.06 kg
Unit Calculated Volume	0.0004312 cubm
Units per Shipping Box	1
Shipping Box Weight	0.15 kg
Unit Width	14 cm
Shipping Box Height	2.2 cm
Unit Depth	14 cm
Shipping Box Depth	14 cm
Unit Height	2.2 cm
Shipping Box Width	14 cm
Name	CABLE DISPLAY PORT 2M/ANTHRA 36482 LINDY
